SLANVERT Medium and Low Voltage Variable Frequency Drive for Fracturing Equipmen Solution

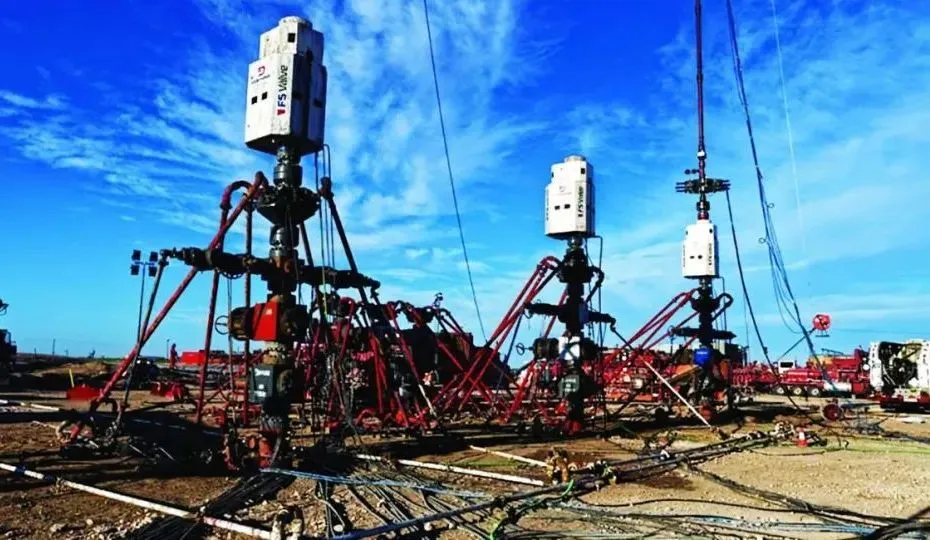

In China, the shale gas resources are mostly distributed in mountainous areas, with complex surface conditions, higher clay and mineral content, and greater air resistance within the rocks.

Traditional fracturing equipment uses a diesel engine as the power source to connect to a hydraulic torque converter, and the hydraulic torque converter is directly connected to the fracturing pumping through a transmission shaft. The engine and hydraulic torque converter are both imported parts with long delivery time and high cost. The transmission chain is long and the transmission efficiency is low. The engine emissions are high and the noise is loud during operation.

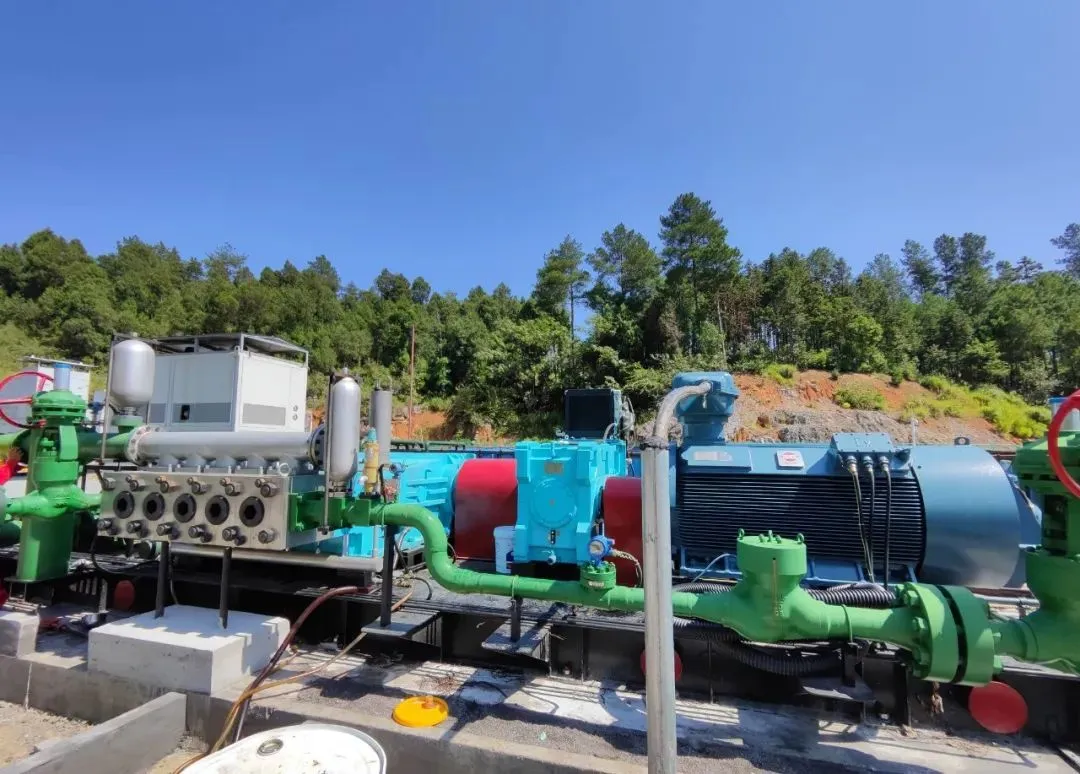

Electric fracturing equipment is the core to increasing oil and gas production and reserves. Its main functions include:
1) Relieve oil layer contamination and blockage caused by killing fluid during drilling or workover;
2) Fracturing and fragmenting the reservoir to increase the permeability and connectivity of the reservoir and improve the productivity of oil and gas wells;
3) Perform layered fracturing and repeated fracturing on oil and gas wells to increase the thickness and number of oil and gas layers and increase the reserves of oil and gas wells;
4) Fracturing in a high-pressure environment can effectively reduce the well pressure and the compressibility of gas, and improve the mining effect and production efficiency of wells.

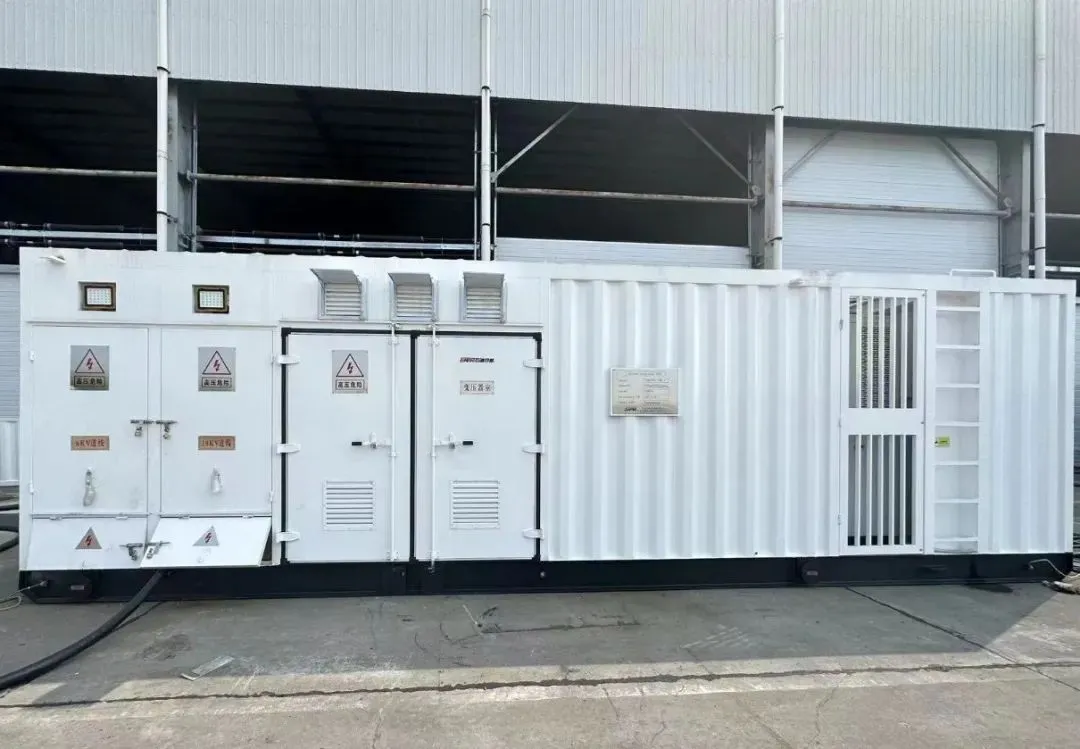

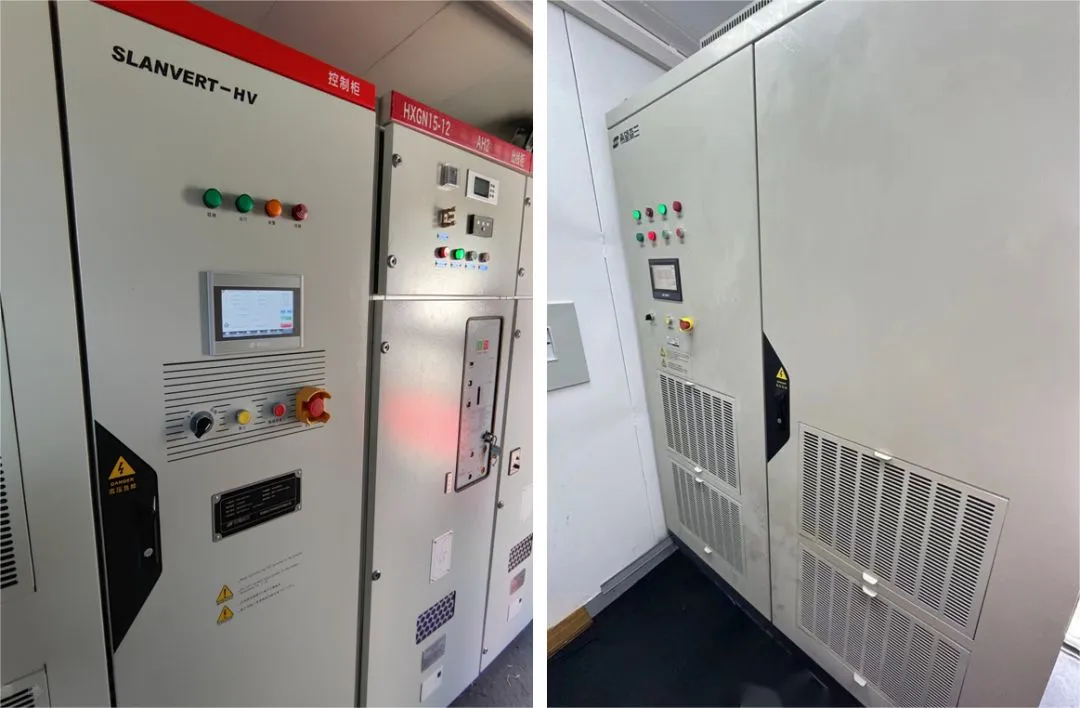

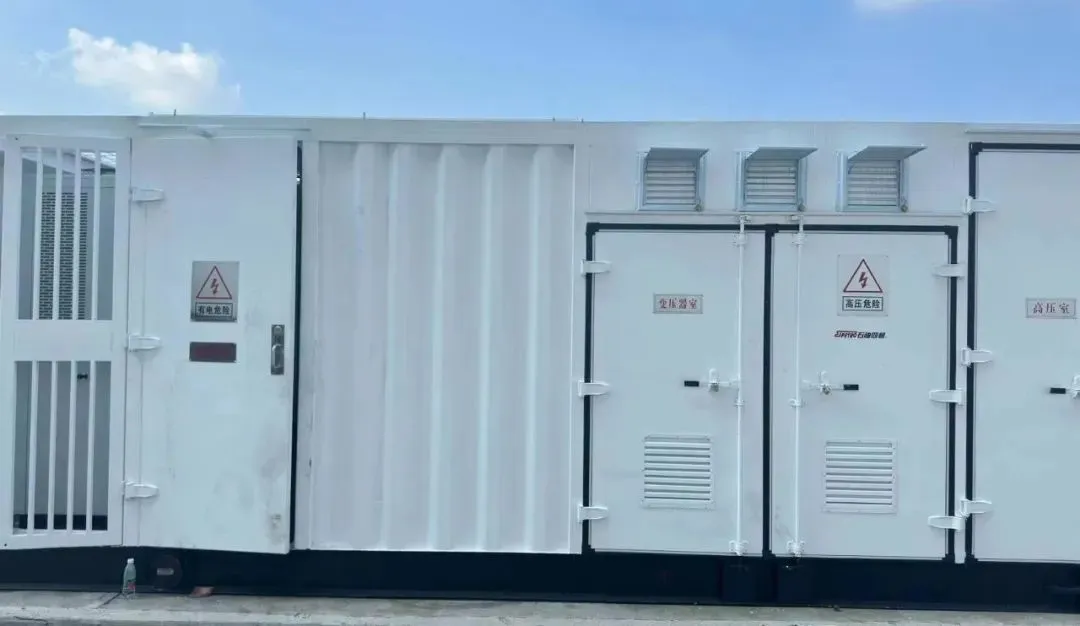

SLANVERT developed a "Special high and low Voltage variable frequency control system for fracturing skid " by analyzing and studying the operating characteristics of oil production pressure flooding and water injection technology, and based on years of application experience in oil drilling and electric fracturing equipment.

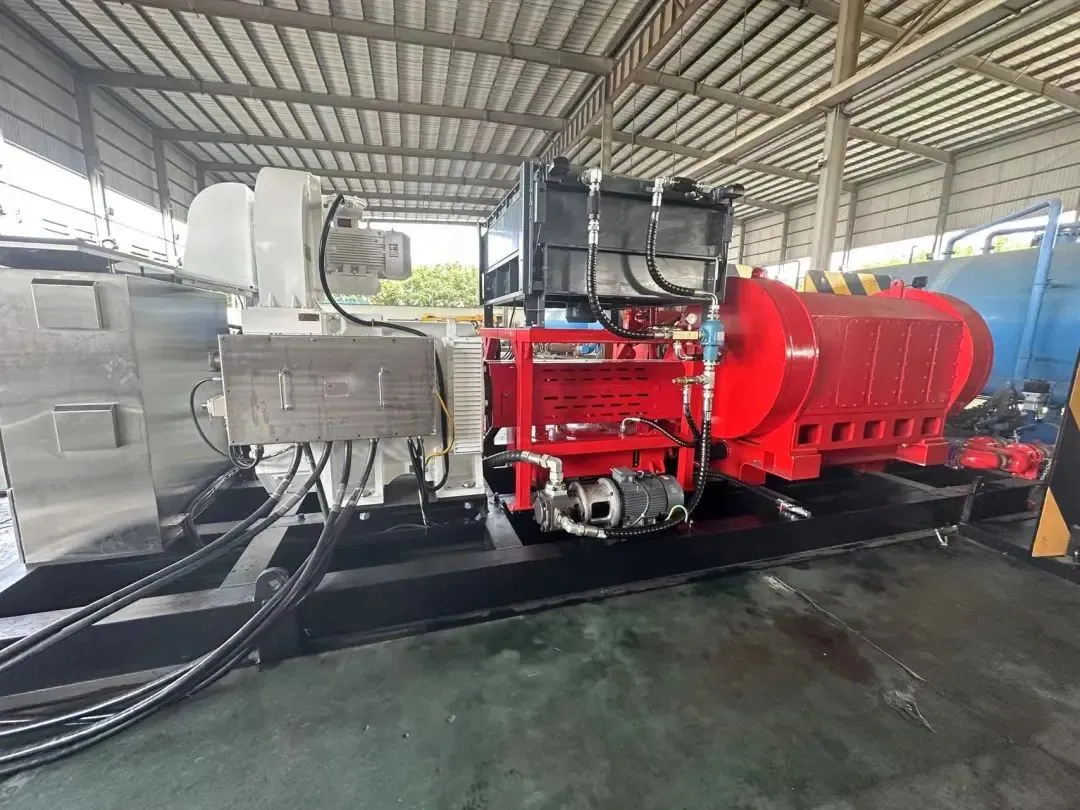

Through the core technology of high and low voltage variable frequency vector control, the output performance parameters of the electric fracturing skid can fully meet the process requirements. Under the operating conditions of high pressure and large displacement, it can meet the requirements of long-term stable operation in harsh outdoor environments.

Core Technology of SBH and Hope880 Series:
▷ Key technologies for high and low voltage variable frequency vector control
▷ One-click self-learning, automatically matching motor characteristics
▷ Large starting torque, smooth acceleration, and high control accuracy
▷ Quickly response, constant pressure liquid supply, and high production efficiency
▷ SVPWM, low torque ripple, about 40% noise reduction;
▷ It has complete control and protection functions, including overcurrent, overvoltage, undervoltage, leakage detection, motor temperature protection, bearing temperature protection, etc.
SLANVERT's " Special High and Low Voltage Variable Frequency Control System for Fracturing Skid " will provide more options for the electric fracturing equipment market. This state-of-art can help partners master the application skills of full working conditions, ultra-high pressure and multiple scenarios to cope with Different well location fracturing needs to achieve efficient, energy-saving, green and environmentally friendly oil and gas field exploitation. While fulfilling the "double carbon" goal, it also contributes to the localization and industrialization process of electric drive fracturing equipment.
